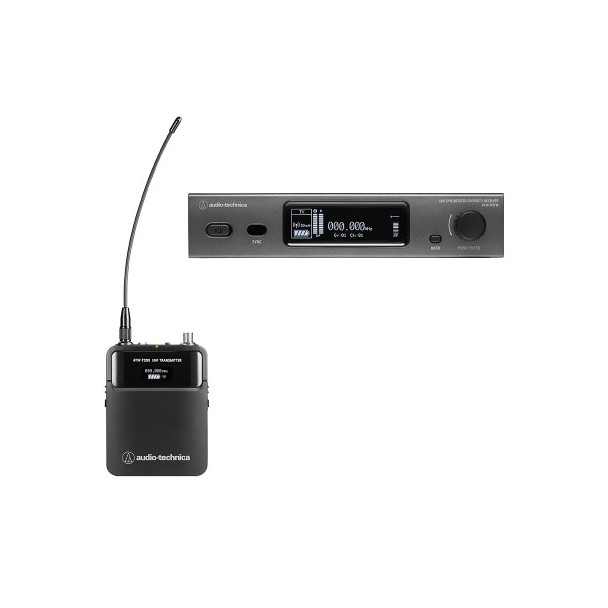

AUDIO TECHNICA ATW-3211

https://guitarshopegypt.com/web/image/product.template/21256/image_1920?unique=749d2ae


Overall System
Operating Frequencies Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
Operating Frequencies Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies) Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
Minimum Frequency Step 25 kHz
Modulation Mode FM
Maximum Deviation ATW-T3201: ±38 kHz (THD:10%)
ATW-T3202: ±36 kHz (THD:10%)
Frequency Response ATW-T3201: 31 Hz to 15,500 Hz ATW-T3202: 25 Hz to 16,700 Hz Frequency response depends on attached microphone element
Operating Range 100 m (328')
Open range environment with no interfering signals.
Total Harmonic Distortion <1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Temperature Range -5° C to +45° C (23° F to 113° F)
Simultaneous Use 40 Channels per band* For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent
Handheld Transmitter
RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Spurious Emissions Following Federal and National Regulations
Microphone Capsule Interchangable industry standard thread
Battery Type Two 1.5V AA, not included
Battery Life High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions.
Dimensions ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter ATW-T3202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter
Net Weight ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries ATW-T3202/C510: 330 g (11.6 oz), without batteries ATW-T3202/C710: 314 g (11.1 oz), without batteries
Body Pack
RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Battery Life High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions.
Battery Type Two 1.5V AA, not included
Dimensions 64 mm x 82 mm x 23 mm (W x D x H) 2.52" x 3.22" x 0.91" (W x D x H)
Input Connections cH-style screw-down 4-pin connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V
Net Weight 102 g (3.6 oz), without batteries
Spurious Emissions Following Federal and National Regulations
High-pass (low-freq. roll-off) 125Hz, 12dB/octave
Receiver
Receiving System True Diversity
Image Rejection 60 dB nominal
RF Sensitivity 20 dBuV at 60 dBA S/N ratio (50 ohms termination)
Maximum Output Level XLR, balanced: +14 dBV
6.3 mm (1/4"), unbalanced: +8 dBV
Antenna Input BNC-type, 50 ohms
Antenna Power 12 V DC, 160 mA (combined)
Power Supply 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions 210.0 mm x 191.0 mm x 43.4 mm (W x D x H) 8.27" x 7.52" x 1.71" (W x D x H)
Weight 1100 g (38.8 oz), without accessories
Accessories Included Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters
