AUDAC LIM012

To protect your audio equipment and to comply with the prescribed volume guidelines, it is wise to place a limiter between the source, your final mixer and/or your amplifiers.

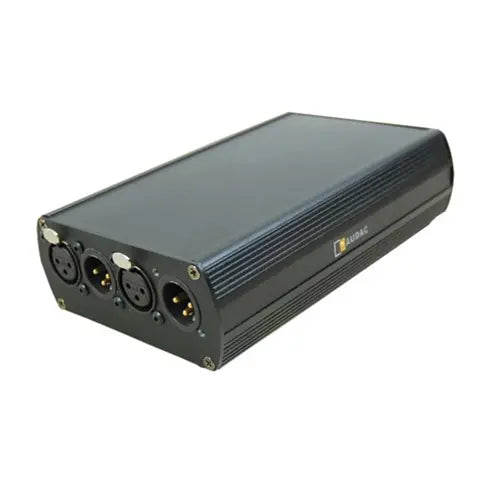

This LIM012 from Audac is a balanced stereo limiter with a very high quality and a compact size. This limiter has an input in the form of two XLR female connectors and an output in the form of two XLR male connectors. You can set the limiter level using a rotary knob. You can choose from a level of -30 dBV, a level of -24 dBV, a level of -18 dBV, a level of -12 dBV, a level of -6 dBV and a level of 0 dBV.

Specifications:

• Balanced stereo limiter (or dual mono limiter)
• To protect audio equipment and adjust volume to general guidelines
• Input: 2 x XLR female
• Output: 2 x XLR male
• Equipped with a limit knob (for setting the limiter level: -30 dBV, -24 dBV, -18 dBV, -12 dBV, -6 dBV or 0 dBV)
• Equipped with 6 LEDs for reading the limiter level (-30 dBV, -24 dBV, -18 dBV, -12 dBV, -6 dBV and 0 dBV)
• Equipped with 2 overload LEDs (left and right)
• Equipped with an on/off switch
• Input Level: -10 dB
• Frequency range: 20 Hz – 20 kHz
• S/N ratio (signal to noise ratio): > 90 dB
• THD + N (total harmonic distortion + noise): < 0.15%
• Sturdy aluminum housing
• Housing colour: black
• Dimensions: 160 x 110 x 44 mm (L x W x H)
• Weight: 470 grams

• Includes a PSD242 power supply
