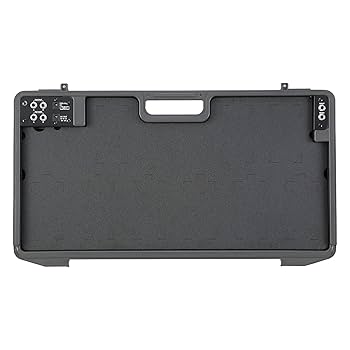

Boss BCB-90X Pedal Board
Evolved from the famous BOSS BCB-60 pedalboard used by players for almost two decades, the next-generation BCB-90X delivers more versatility for modern pedal setups. A customizable insert lets you create a personalized layout with a variety of different pedal types, including BOSS compacts, GT-1000CORE and 200-/500-series pedals, loop switchers, volume/expression pedals, and others. Tough molded construction offers great looks, durability, and light weight, while built-in junction boxes make connections on the gig fast and easy.
Boss BCB-90X Pedal Board
Connectors:
INPUT Jack (1/4" phone type)
SEND Jack (1/4" phone type)
RETURN A/B Jack (1/4" phone type)
OUTPUT A/B Jack (1/4" phone type)
DC IN/OUT Jack
Power Supply:
DC 9V: AC adaptor
Accessories:
AC adaptor(PSB-1U + AC Cable Set)
10-pin parallel DC cable x 1
Pre-cut insert pad (thickness:10mm) x 1
Owner's Manual
*When purchasing an AC adaptor, be sure to specify the adaptor (from the list that follows) that is designed for the region in which it will be used, and the voltage supplied there.
(PSB-120/PSB-120TW/PSB-230EU/PSB-230UK/PSB-240A)
Pre-cut insert pad (thickness:10mm)SIZE AND WEIGHT
Width:
661 mm
26-1/16 inches
Depth:
383 mm
15-1/8 inches
Height:
113 mm
4-1/2 inches
Weight:
3.3 kg
